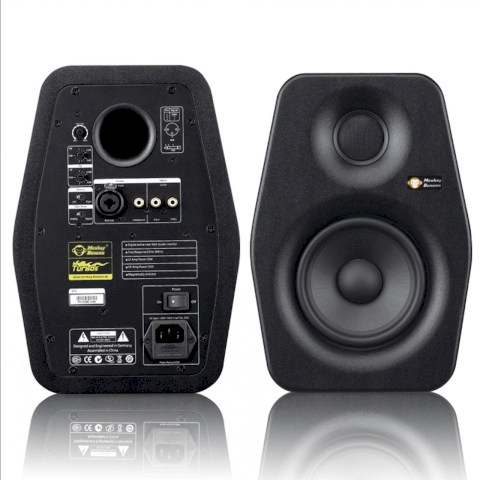

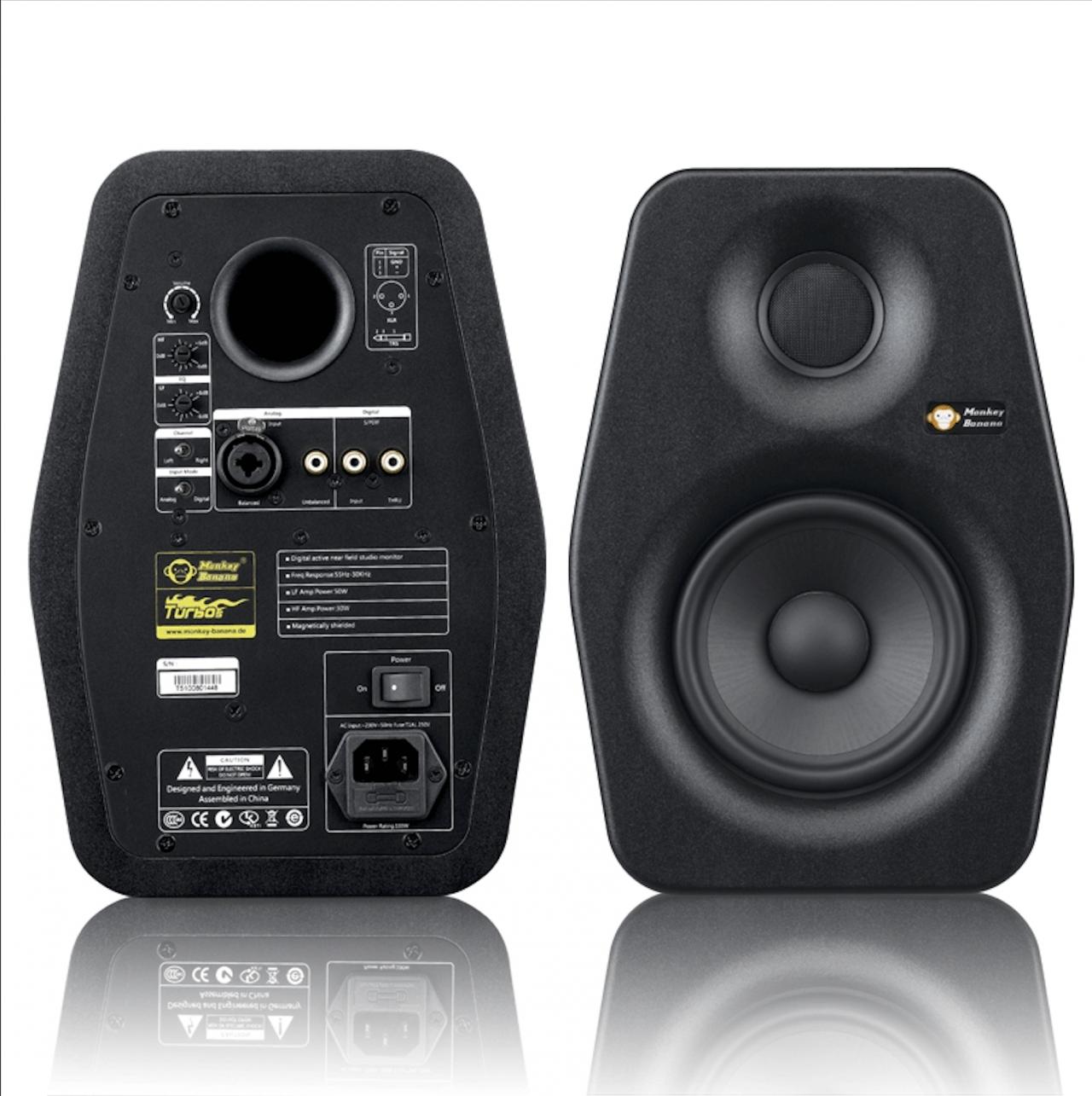

Specifications

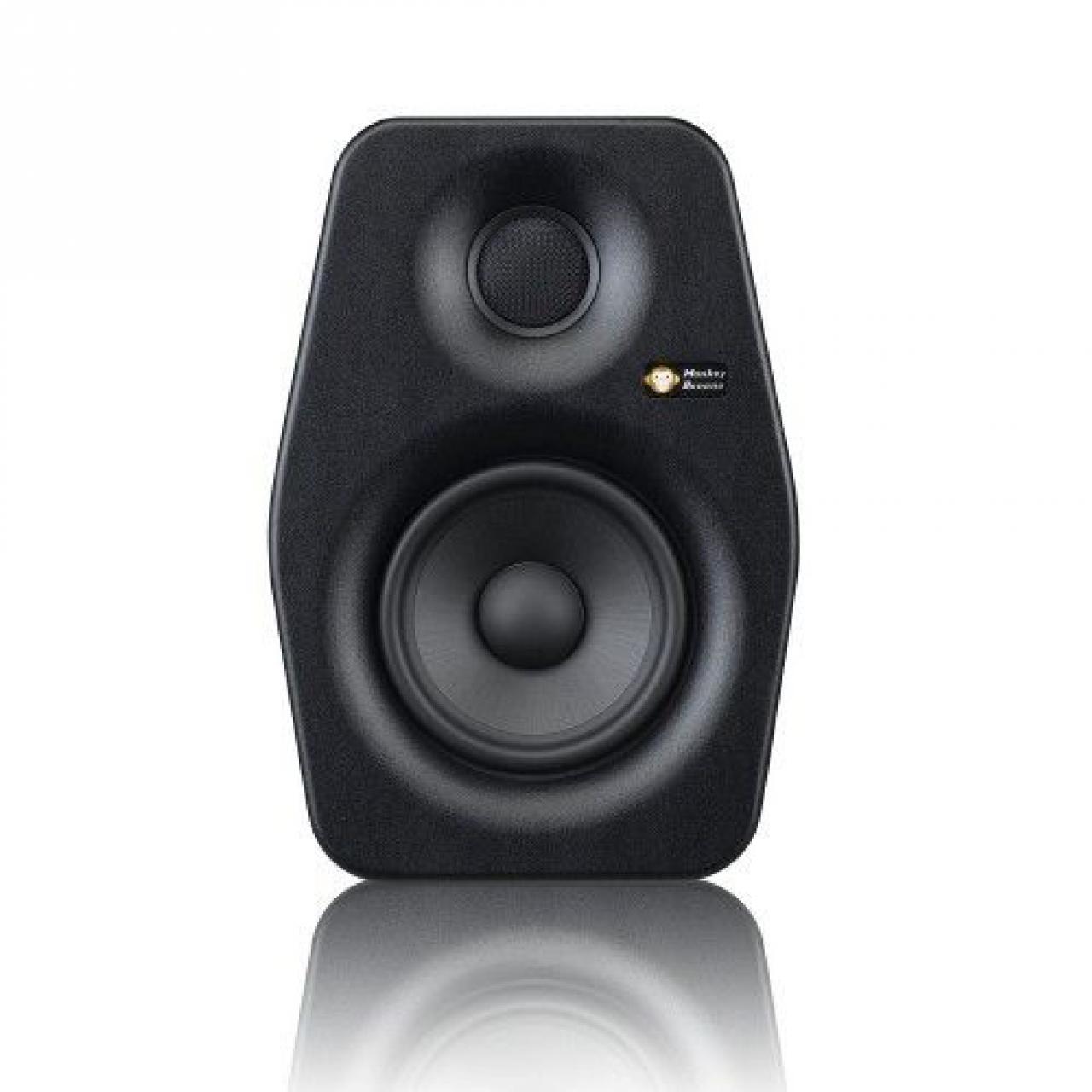

Woofer: | 5 1/4-inch magnetically shielded polypropylene / ceramic membrane |
Tweeter: | 1-inch silk dome tweeter |
Frequency response: | 55Hz - 30kHz |
HF - Level: | -6dB ~ +6 dB variable at 10kHz |
LF - Level: | -6dB ~ +6 dB variable at 100Hz |
Crossover frequency: | 3kHz |
LF - Amplifier Power: | 50W |
HF - Amplifier Power | 30W |
Signal HF / LF: | 90dB / 95dB |
THD + N @ Rated Power HF / LF: | 0.02% / 0.05% |

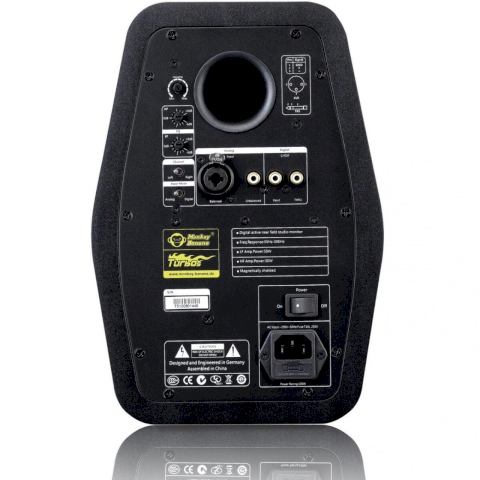

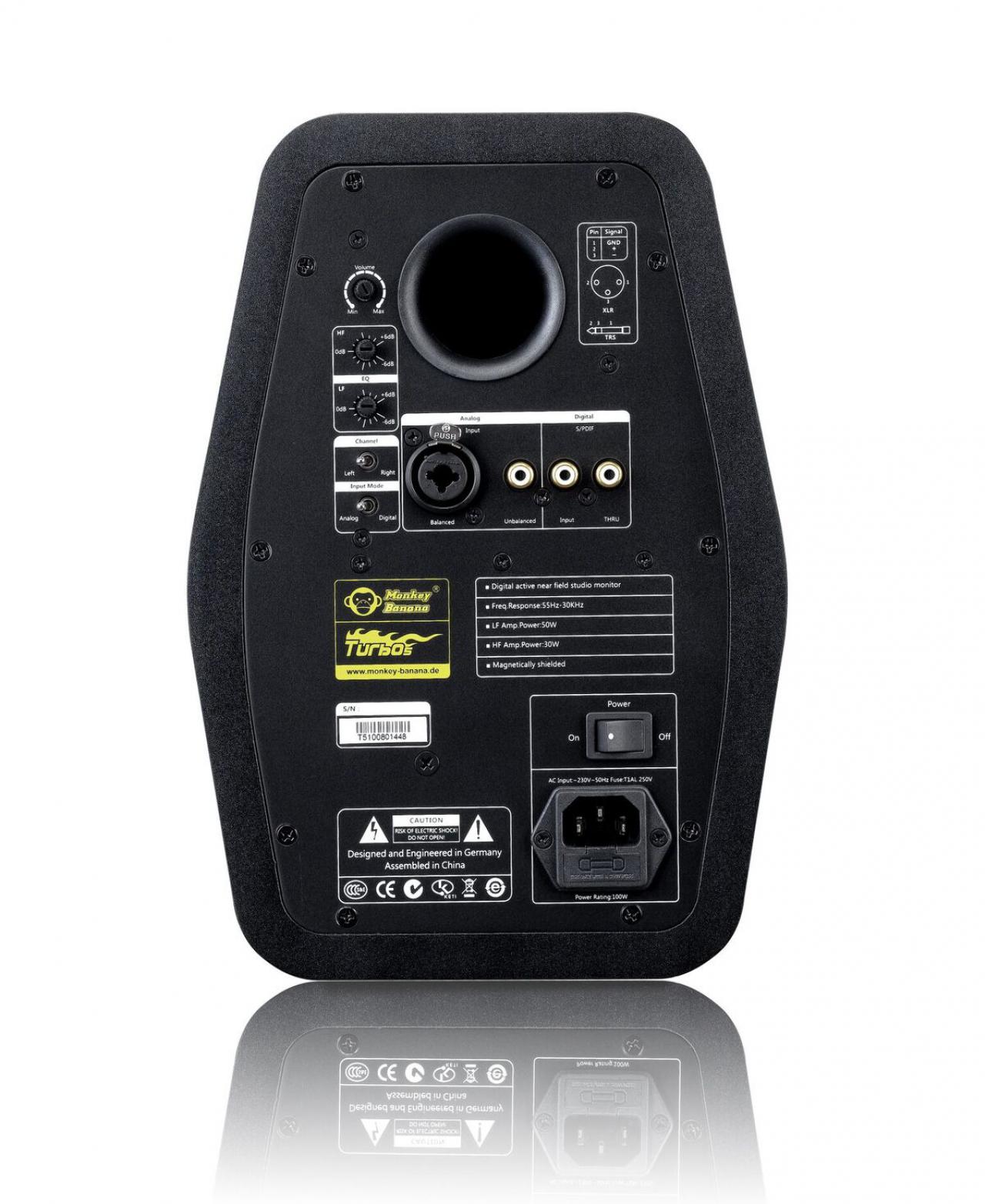

Inputs: | XLR/TRS - Neutrik® Combo-jack, RCA input, S/PDIF - RCA input for digital signal |
Outputs: | S / PDIF - RCA jack for digital signal thru |
Input Select: | Analog or Digital |
Channel selection: | Left or Right (Digital input mode only) |
Input Impedance: | 20 kOhm balanced, 10 kOhm unbalanced |
Input Sensitivity: | +4 dBu (Balanced), -10dBV (unbalanced) |
Available colors: | Red, Black, Yellow |
Gross Weight: | 7.5 kg / 16.6lb |
Net weight: | 5.9 kg / 13lb |
Gross Dimensions: | L320 x W287 x H389 mm L12.6x W11.3 x H15.31 in |
Net Dimensions: | L222 x W192 x H275 mm L8.74x W7.56 x H10.83 in |
